Honda CB500 (1993-2003)

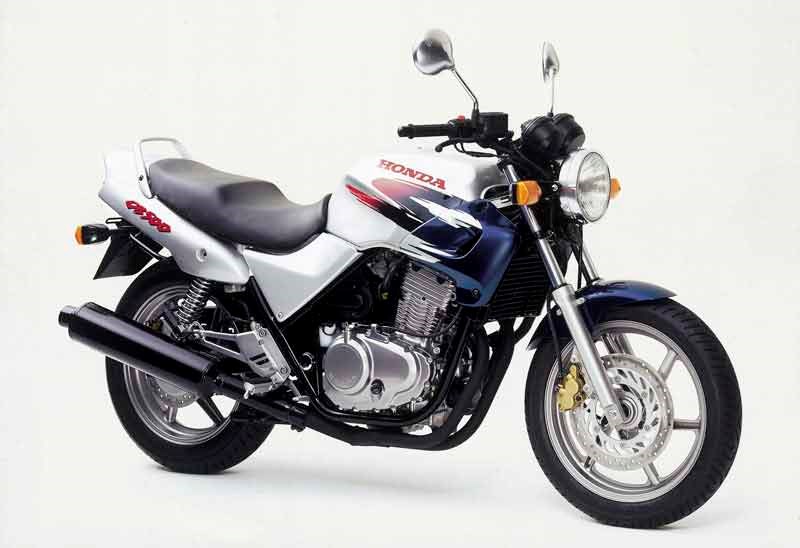

1993 CB500
CB500 (1993-2003)

1993-2003

  • Capacity: 499cc
  • Weight: 173kg (dry)
  • Fuelling: Carbureted (18L tank)
  • Frame: Tubular Steel
  • Front Tyre: 110/90-17
  • Rear Tyre: 130/80-17
  • Drive: 525 x 108 (JTF297.15, JTR1332.40)
  • Notes: Production ceased due to being unable to meet Euro 2 emissions regulations. Replaced in 2004 by the CBF500. Not to be confused with the CB500F - which came a lot later.

Variants

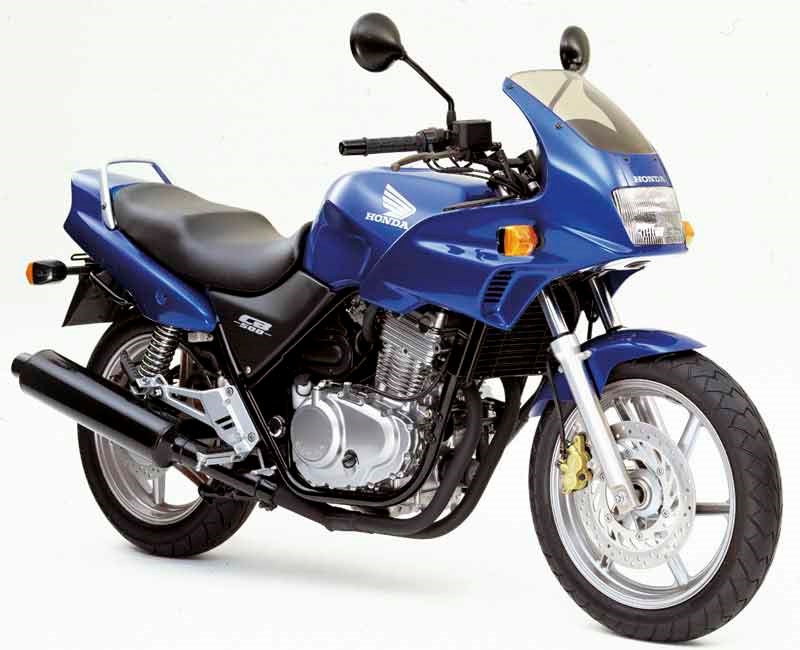

Honda CB500S 1993
Honda CB500S

Factoids

Was used in the Honda CB500 Cup (updated to Thundersport 500 in 2009 with inclusion of GS500 and ER-5).

1994: CB500R – rear drum brake, made in Japan

1996: CB500T – some made in Italy

1996: CB500V – CB500 cup race introduced. Special silver model with cup logo (CB500 Cup). Production moved to Italy.

1998: CB500W – naked version. CB500SW – sport half faired version, different headlight. New instrument and handlebar layout.

1998 dec: CB500X/SX

2000-2003: CB500Y/SY

CB500 Cup

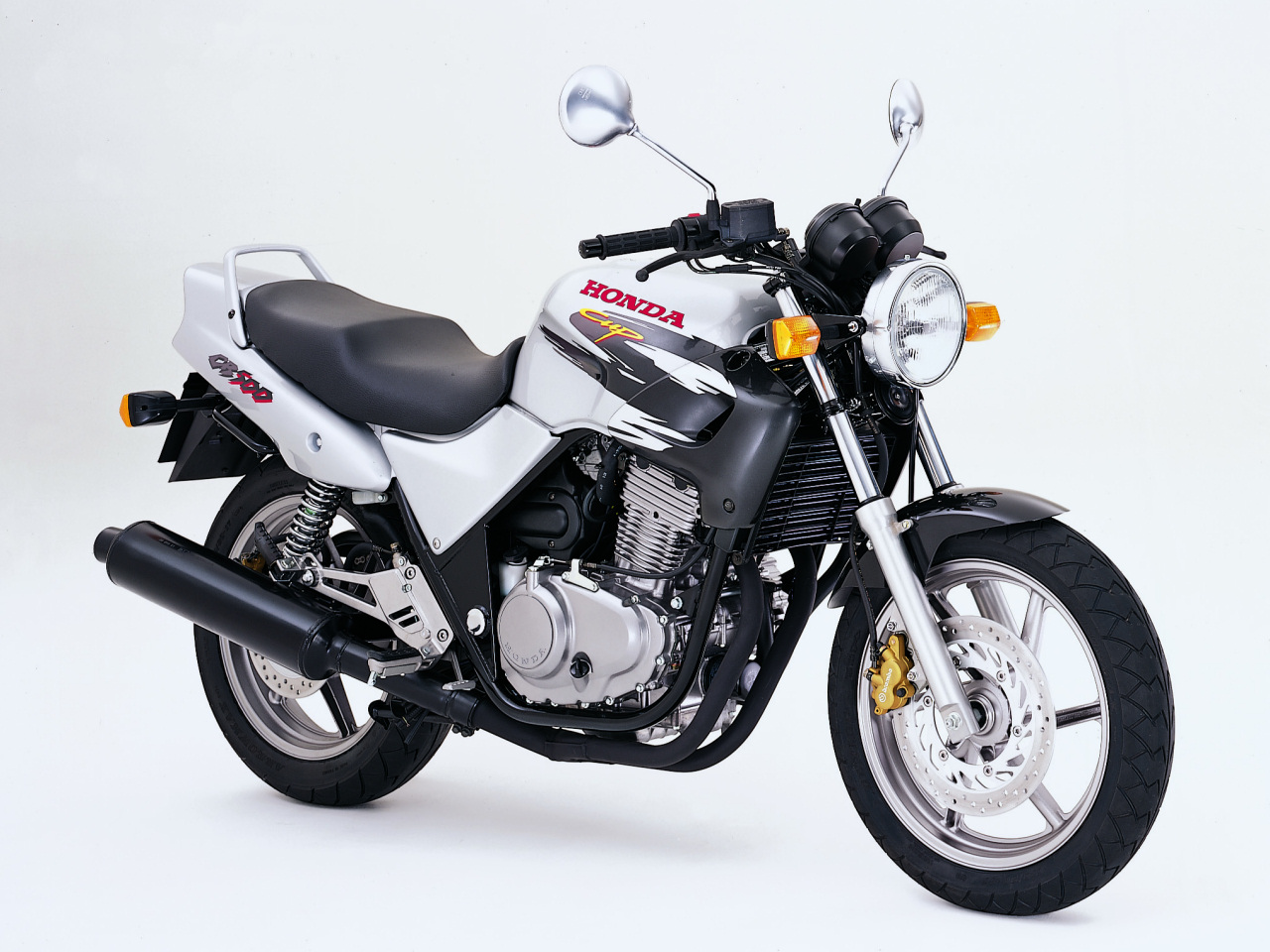

Honda CB500 Cup 1998
Honda CB500 Cup

There is nothing special about the CB500 cup - it is identical to the standard CB500, but with different decals to commemorate the CB 500 Cup (which is now the Thundersport 500).
